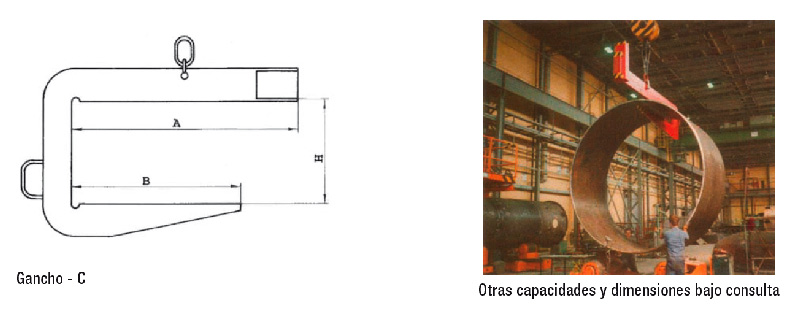

Versión con contrapeso de equilibrado y 3/4 brazo de elevación/suspensión.
El gancho sin carga permanece en equilibrio con la vertical, y bajo carga se inclina levemente hacia arriba.
| Ref. | C.M.U. Kg |
A mm |
B mm |
H mm |
Anilla h x b mm | Peso Kg |
| C0.5-750 | 500 | 1000 | 750 | 400 | 100 x 60 | 35 |
| C1,0-750 | 1000 | 1000 | 750 | 450 | 100 x 60 | 70 |
| C2,5-750 | 2500 | 1000 | 750 | 500 | 120 x 75 | 155 |
| C5,0-1125 | 5000 | 1500 | 1125 | 550 | 140 x 90 | 360 |
| C7,5-1125 | 7500 | 1500 | 1125 | 550 | 155 x 100 | 520 |
| C10,0-750 | 10000 | 1000 | 750 | 600 | 230 x 140 | 420 |
| C10,0-1125 | 10000 | 1500 | 1125 | 650 | 230 x 140 | 700 |
| C15,0-1125 | 15000 | 1500 | 1125 | 700 | 260 x 160 | 980 |
| C15,0-1500 | 15000 | 2000 | 1500 | 700 | 260 x 160 | 1400 |
| C20,0-940 | 20000 | 1250 | 940 | 700 | 295 x 180 | 1050 |
| C20,0-1500 | 20000 | 2000 | 1500 | 700 | 295 x 180 | 1750 |
| C25,0-1500 | 25000 | 2000 | 1500 | 850 | 295 x 180 | 2100 |
| C30,0-1500 | 30000 | 2000 | 1500 | 950 | 300 x 190 | 2600 |
| C40,0-1500 | 40000 | 2000 | 1500 | 1100 | 335 x 200 | 3600 |
