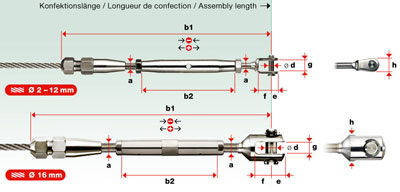

REF. | (n5) DXF |
Ø cable [mm] |
a [M] |
b1 [mm] |
b2 [mm] |
Ø d [mm] |
e [mm] |
f [mm] |
g [mm] |
h [mm] |
Peso [kg/un] |
I822-0200 | DXF | 2,0 | M6 | 239 +22|-44 | 92 | 5 | 6 | 12 | 7,5 | 12,5 | 0,103 |
I822-0300 | DXF | 3,0 | M6 | 238 +22|-44 | 92 | 5 | 6 | 12 | 7,5 | 12,5 | 0,103 |
I822-0400 | DXF | 4,0 | M6 | 239 +22|-44 | 92 | 5 | 6 | 12 | 7,5 | 12,5 | 0,103 |
I822-0500 | DXF | 5,0 | M8 | 262 +26|-52 | 112 | 6 | 7 | 13 | 10,0 | 14,5 | 0,184 |
I822-0600 | DXF | 6,0 | M8 | 262 +26|-52 | 112 | 6 | 7 | 13 | 10,0 | 14,5 | 0,184 |
I822-0600-10 | DXF | 6,0 | M10 | 272 +30|-44 | 120 | 8 | 9 | 15 | 11,0 | 18,0 | 0,298 |
I822-0800 | DXF | 8,0 | M12 | 351 +44|-58 | 150 | 12 | 14 | 26 | 14,0 | 26,0 | 0,424 |
I822-0800-10 | DXF | 8,0 | M10 | 293 +30|-44 | 120 | 8 | 9 | 15 | 11,0 | 18,0 | 0,658 |
I822-1000 | DXF | 10,0 | M16 | 440 +42|-62 | 190 | 14 | 18 | 32 | 22,0 | 34,0 | 1,354 |
I822-1200 | DXF | 12,0 | M20 | 524 +50|-58 | 220 | 19 | 22 | 40 | 24,0 | 43,0 | 2,566 |
I822-1600 | DXF | 16,0 | M24 | 551 +48|-92 | 212 | 25 | 35 | 40 | 25,4 | 63,0 | 5,067 |
Notas:
- Material AISI 316.
