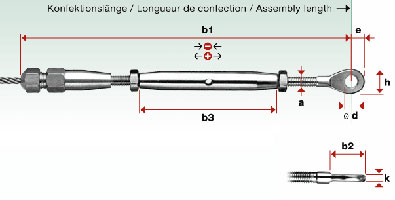

REF. | (n5) DXF |
Ø cable [mm] |
a [M] |
b1 [mm] |
b2 [mm] |
b3 [mm] |
Ø d [mm] |
e [mm] |
h [mm] |
k [mm] |
Peso [kg/un] |
I819-0200 | DXF | 2,0 | M6 | 223 +22|-44 | 16 | 92 | 6,5 | 7,0 | 14 | 4 | 0,095 |
I819-0300 | DXF | 3,0 | M6 | 232 +22|-44 | 16 | 92 | 6,5 | 7,0 | 14 | 4 | 0,095 |
I819-0400 | DXF | 4,0 | M6 | 231 +22|-44 | 16 | 92 | 6,5 | 7,0 | 14 | 4 | 0,095 |
I819-0500 | DXF | 5,0 | M8 | 262 +26|-50 | 21 | 112 | 8,5 | 9,5 | 17 | 5 | 0,176 |
I819-0600 | DXF | 6,0 | M8 | 262 +26|-52 | 21 | 112 | 8,5 | 9,5 | 17 | 5 | 0,176 |
I819-0600-10 | DXF | 6,0 | M10 | 283 +20|-54 | 29 | 120 | 10,5 | 12,0 | 22 | 6 | 0,176 |
I819-0800 | DXF | 8,0 | M12 | 352 +44|-58 | 31 | 150 | 13,0 | 14,0 | 25 | 8 | 0,176 |
I819-0800-10 | DXF | 8,0 | M10 | 304 +20|-54 | 29 | 120 | 10,5 | 12,0 | 22 | 6 | 0,176 |
I819-1000 | DXF | 10,0 | M16 | 426 +42|-62 | 37 | 190 | 14,5 | 15,5 | 31 | 10 | 0,176 |
I819-1200 | DXF | 12,0 | M20 | 499 +50|-58 | 49 | 220 | 19,5 | 21,0 | 40 | 15 | 0,176 |
Notas:
- Material AISI 316.
