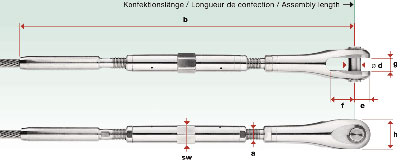

I870 - TENSOR INOX CON TERMINAL PRENSADO MACHO Y HORQ.

I870 - Tensor inox con terminal prensado macho y horq.

REF. (n5)
DXF
Ø cable
[mm]
a
[M]
b1
[mm]
b2
[mm]
Ø d
[mm]
e
[mm]
f
[mm]
g
[mm]
h
[mm]
Peso
[kg/un]
I870-0200 DXF 2,0 M5 178 +26|-34 80 5,0 6 12 7,5 12,5 0,04
I870-0300 DXF 3,0 M6 207 +22|-44 92 5,0 6 12 7,5 12,5 0,07
I870-0400 DXF 4,0 M6 211 +22|-44 92 5,0 6 12 7,5 12,5 0,071
I870-0400-1 DXF 4,0 M8 233 +26|-52 112 6,0 7 13 10,0 14,5 0,136
I870-0500 DXF 5,0 M8 239 +26|-52 112 6,0 7 13 10,0 14,5 0,135
I870-0600 DXF 6,0 M10 269 +20|-54 120 8,0 9 15 11,0 18,0 0,234
I870-0800 DXF 8,0 M12 355 +34|-70 150 12,0 14 25 14,0 26,0 0,474
I870-1000 DXF 10,0 M16 458 +42|-84 190 14,0 18 32 22,0 34,0 0,994
I870-1200 DXF 12,0 M20 554 +50|-98 220 19,0 22 40 24,0 43,0 1,813
I870-1600 DXF 16,0 M24 573 +44|-82 280 25,4 35 40 25,4 57,0 4,853

v121212RT

Notas:

  • Material AISI 316.
  • Disponible también en tensor de ojo.
  • Compuesto por: 1 x (I850 ò I855), 1 x (I871 ò I872), 1 x I875, 1 x I892 y 1 x I893.
